Applicability: Neutral and anionic polymers, (PEO, PEG, Pullulan, Dextran, Poly(acrylamide), Hyaluronic acid, Poly(acrylic acid), Carboxymethylcellulose, etc.)
Eluents: water (with salts/buffers, MeOH, ACN) pH: 1.5 – 13
Material: Polyhydroxymethacrylate copolymer network
Maximum Pressure: 50 – 80 bar (725 – 1160 psi), depending on porosity
Maximum Temperature: 80° C
Maximum Flow Rate: 2 ml/min (I.D.: 8 mm)
Particle Size: 3, 5 and 10 µm
Molecular Weight Range: 100 to > 30 000 000 Da
Standard Columns (others on request)
Separation Range [Da] Preconfigured Column Sets
100 – 100 000 SUPREMA Combination low (P/N 206-0001)
100 – 1 000 000 SUPREMA Combination medium (P/N 206-0002)
100 – 3 000 000 SUPREMA Combination high (P/N 206-0003)
100 – 30 000 000 SUPREMA Combination ultrahigh (P/N 206-0004)
Separation Range [Da] Single Porosity/Linear Columns
100 – 30 000 30 Å
100 – 100 000 100 Å
100 – 1 000 000 1 000 Å
1 000 – 3 000 000 3 000 Å
1 000 – 10 000 000 10 000 Å
5 000 – 30 000 000 30 000 Å
100 – 100 000 Linear S
1 000 – 1 000 000 Linear M
5 000 – 3 000 000 Linear XL
100 – 30 000 000 Ultrahigh
Part numbers depend on particle size and dimension
Columns are available as Analytical, Preparative, HighSpeed, or Micro Columns.

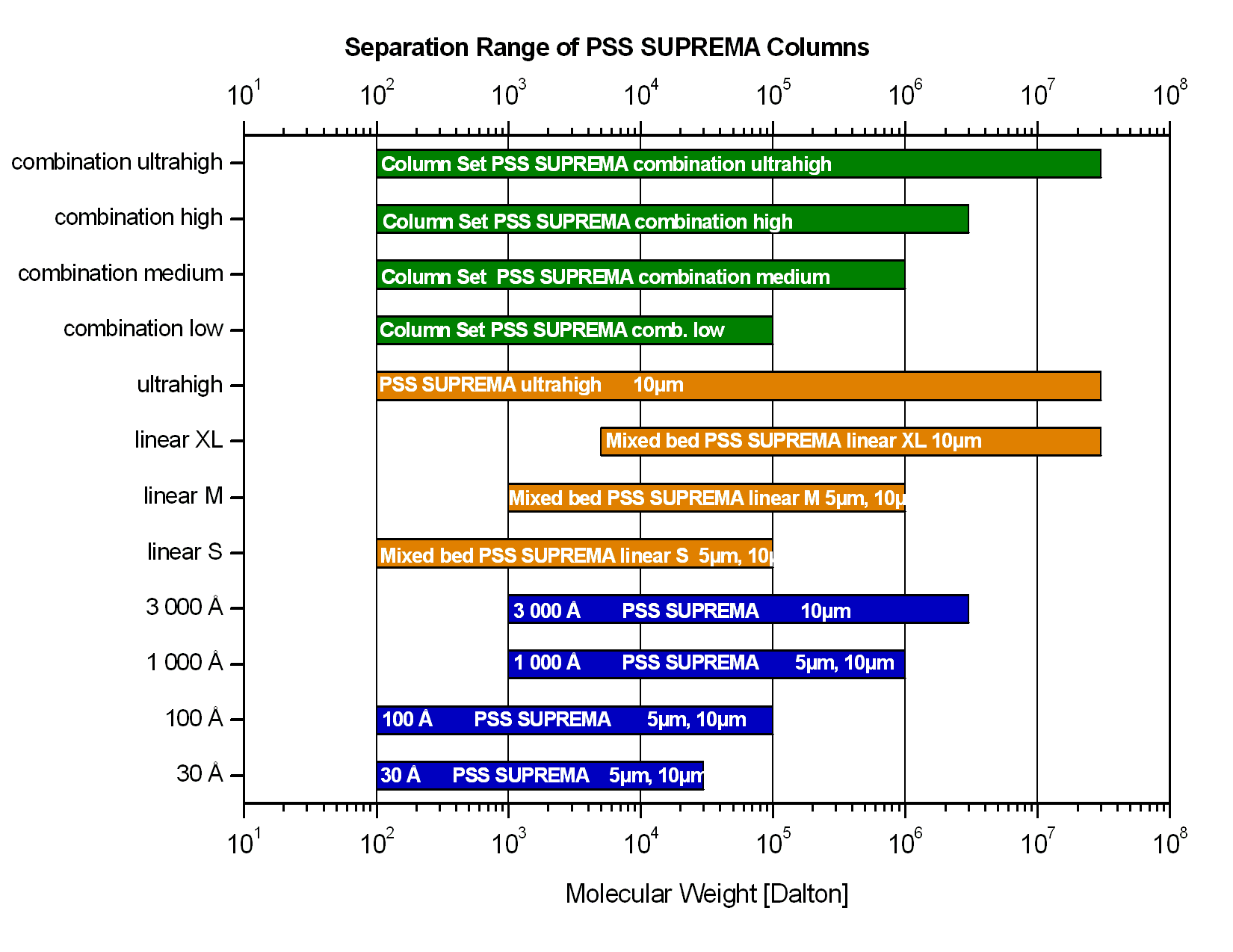

Separation Range
Eluent: aqueous buffer
Calibrants: Pullulan
Calibration Curves: linear columns
Calibrants: Pullulan
