Specifications SDV columns



PSS
Descrizione

Applicability: Poly(styrene), Poly(vinyl chloride), Poly(carbonate), Elastomers, Resins and others
Eluents: THF, Toluene, TCM, DCM
Material: Styrene-divinylbenzene copolymer network
Maximum Pressure: 45 – 150 bar (650 – 2180 psi), depending on porosity
Maximum Temperature: 100° C
Maximum Flow Rate: 3 ml/min (I.D.: 8 mm, 5 µm resp. 10 µm)
Particle Size: 3, 5, 10, 20 µm
Molecular Weight Range: 100 to 30 000 000 Da

Standard Columns (others on request)
Separation Range [Da]     Preconfigured Column Sets
100 – 60 000                              SDV Combination low (P/N 201-0001)
100 – 1 000 000                        SDV Combination medium (P/N 201-0002)
100 – 3 000 000                       SDV Combination high (P/N 201-0003)
100 – 30 000 000                    SDV Combination ultrahigh (P/N 202-0001)

Separation Range [Da]    Single Porosity/Linear Columns
100 – 5 000                                50 Å
100 – 10 000                              100 Å
100 – 30 000                             500 Å
100 – 60 000                             1 000 Å
500 – 700 000                          10 000 Å
1 000 – 1 000 000                    100 000 Å
1 000 – 3 000 000                    1 000 000 Å
5 000 – 30 000 000                 10 000 000 Å
100 – 150 000                            Linear S
100 – 1 000 000                        Linear M
100 – 3 000 000                        Linear XL

Part numbers depend on particle size and dimension
Columns are available as Analytical, Preparative, HighSpeed, or Micro Columns.

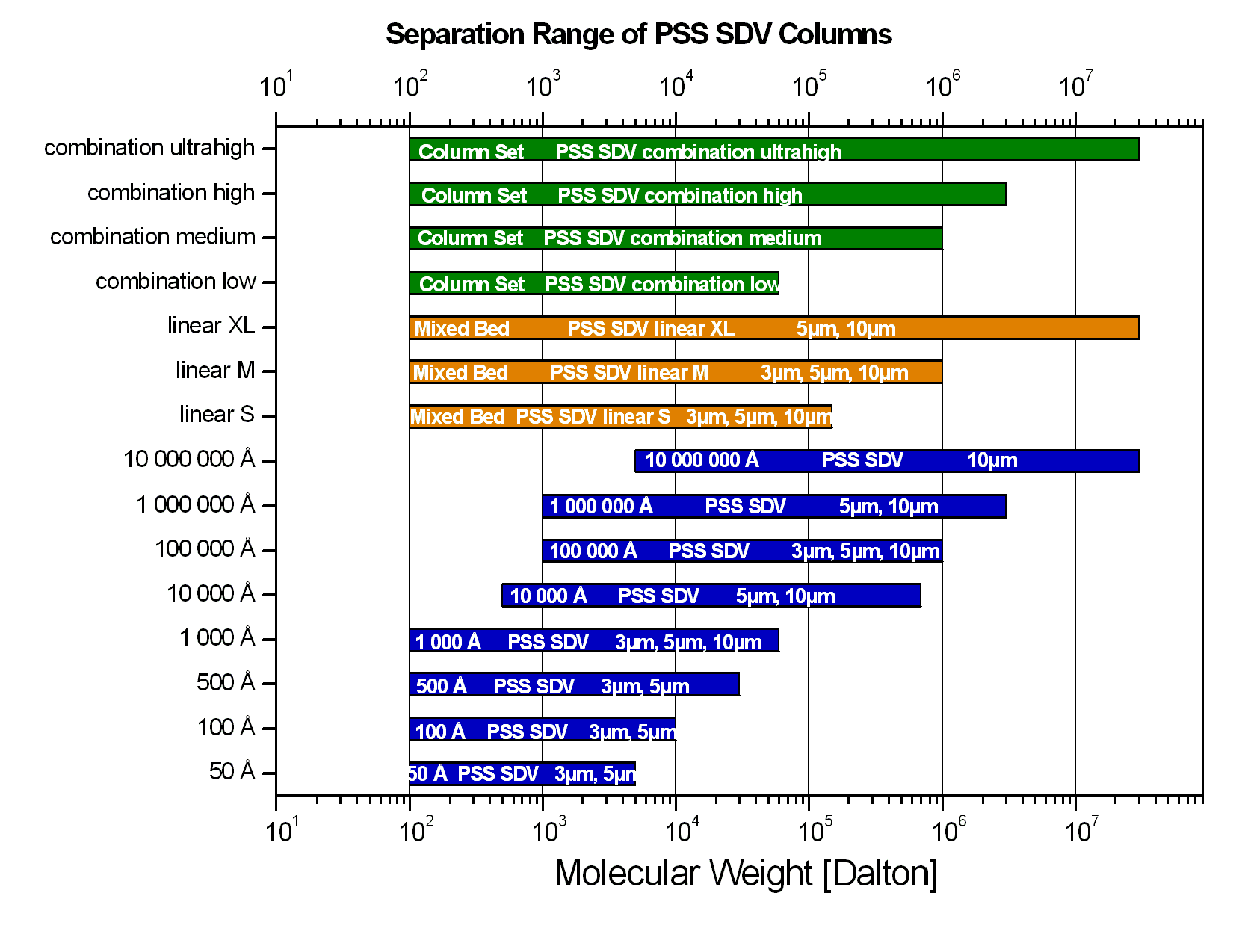

Separation Range

Calibration Curves: single porosity columns

Eluent: THF
Calibrants: Poly(styrene)
Calibration Curves: linear columns
Eluent: THF
Calibrants: Poly(styrene)
