Specifications POLEFIN columns

Applicability: Poly(ethylene), Poly(propylene), other Polyolefins
Eluents: TCB, o-DCB, Decalin
Material: Modified styrene-divinylbenzene copolymer network
Maximum Pressure: 100 – 150 bar (1450 – 2180 psi), depending on porosity
Maximum Temperature: 200° C
Maximum Flow Rate: 2 ml/min (I.D.: 8 mm)
Particle Size: 10 µm, 20 µm
Molecular Weight Range: 100 to 30 000 000 Da

Standard Columns (others on request)
Separation Range [Da]    Preconfigured Column Sets
100 – 60 000                             POLEFIN Combination low (P/N 210-0001)
100 – 1 000 000                       POLEFIN Combination medium (P/N 210-0002)
100 – 3 000 000                       POLEFIN Combination high (P/N 210-0003)
100 – 30 000 000                     POLEFIN Combination ultrahigh (P/N 210-0004)

Separation Range [Da]     Single Porosity/Linear Columns
100 – 10 000                               100 Å
100 – 60 000                               1 000 Å
1 000 – 1 000 000                      100 000 Å
1 000 – 3 000 000                      1 000 000 Å
5 000 – 30 000 000                   10 000 000 Å
100 – 1 000 000                          Linear M
100 – 30 000 000                       Linear XL

Part numbers depend on particle size and dimension
Columns are available as Analytical or HighSpeed Columns.

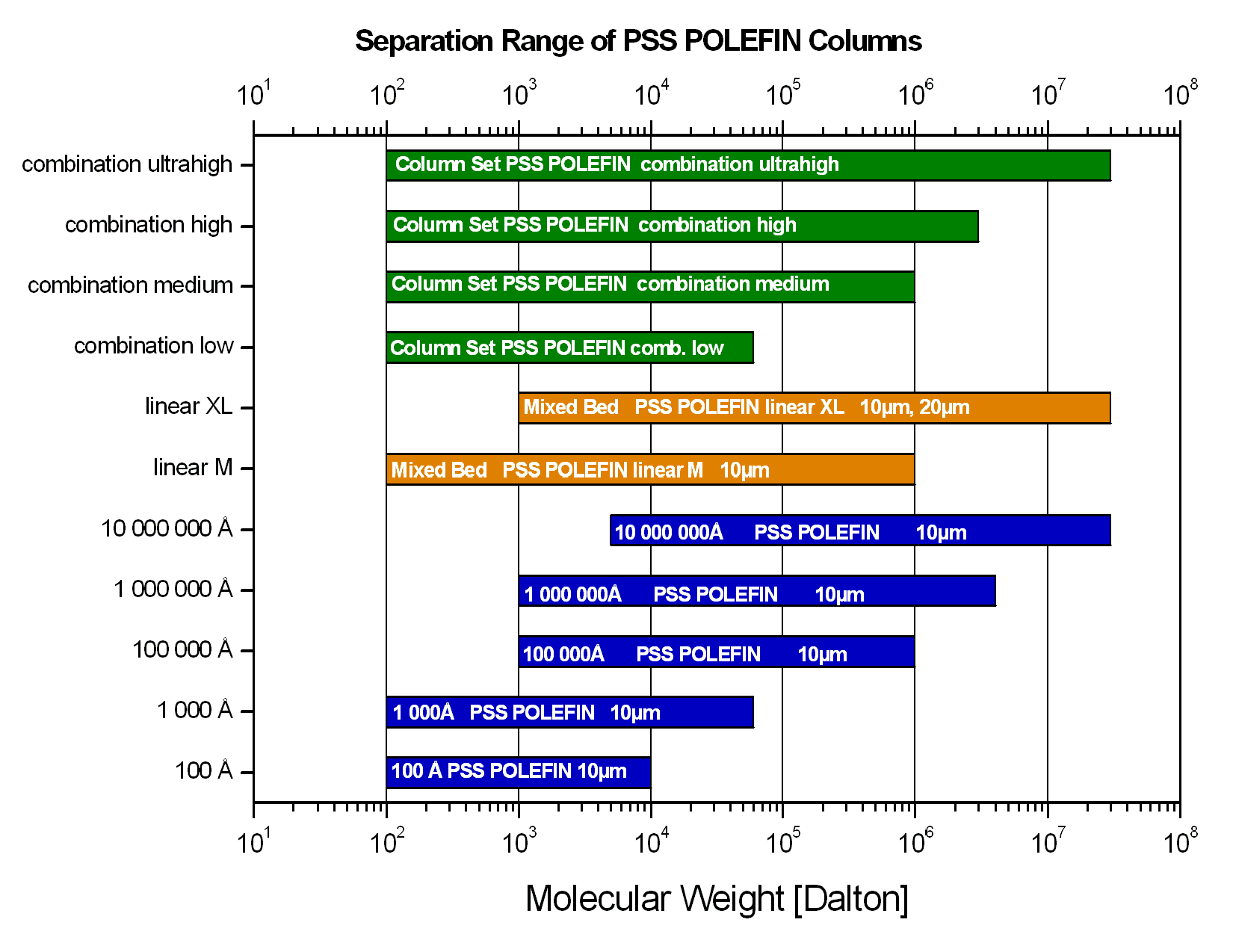

Separation Range

Calibration Curves
