Applicability: Low to medium molar mass resins and lignins
Eluents: DMF, DMAc, NMP, DMSO
Material: Polar modified silica
Maximum Pressure: 150 – 200 bar (2180 –2900 psi), depending on porosity
Maximum Temperature: 90° C
Maximum Flow Rate: 3 ml/min (8 mm I.D.)
Particle Size: 3 µm, 5 µm
Molecular Weight Range: 100 to 1 000 000 Da
Standard Columns (others on request)
Separation Range [Da] Single Porosity/Linear Columns
100 – 100 000 100 Å
1 000 – 300 000 300 Å
10 000 – 1 000 000 1 000 Å
100 – 300 000 Linear S
Part numbers depend on particle size and dimension
Columns are available as Analytical, or Micro Columns.

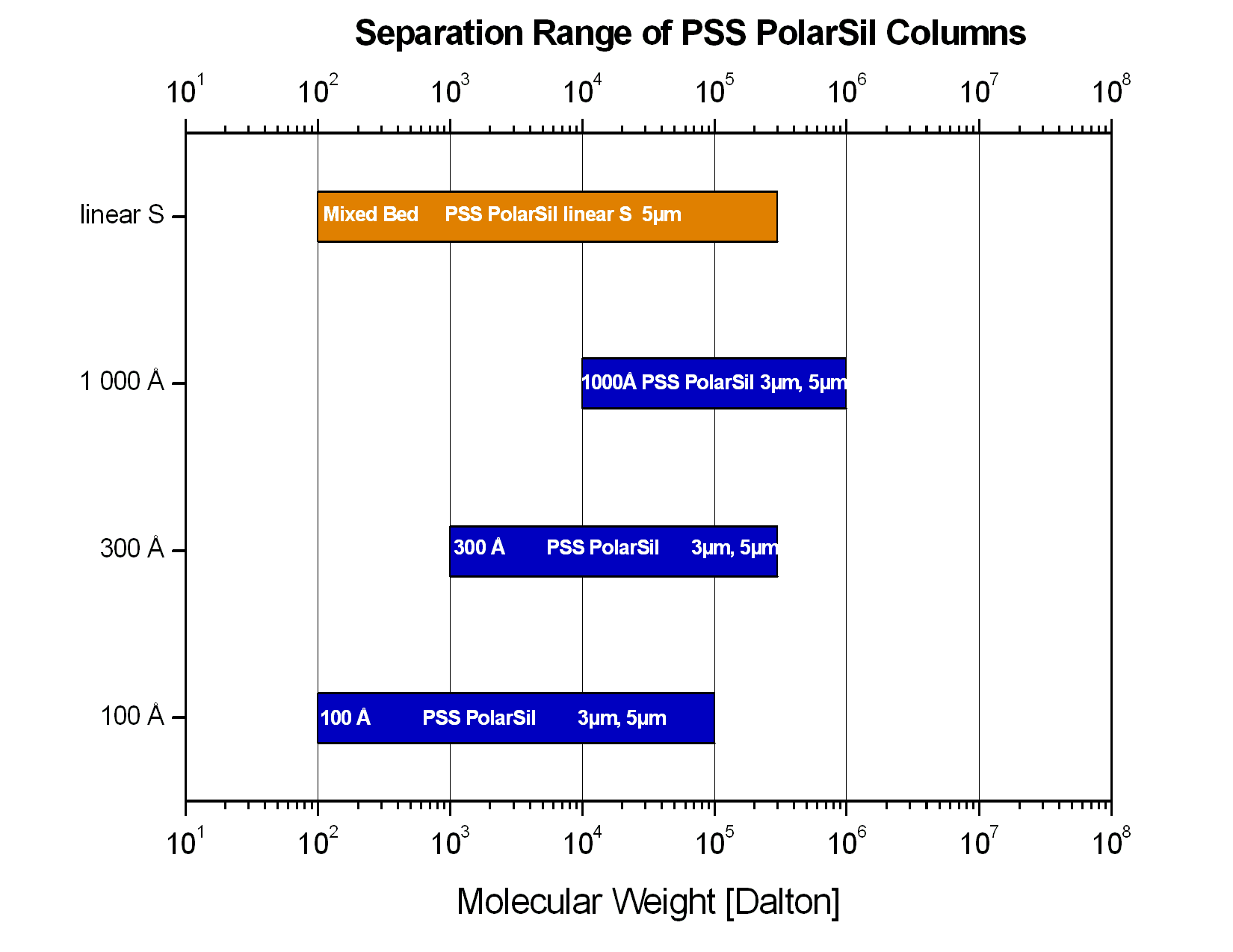

Separation Range
Calibration Curves
Eluent: DMF
Calibration standards: Poly(methyl methacrylate)
