Specifications NOVEMA Max columns

Applicability: Cationic polymers, (Polymeric Quarternary Ammonium Compounds, Poly (DADMAC), Poly(vinylpyridine), Chitosan, Poly(ethyleneimine), etc.)
Eluents: Water, water with salt/buffer, MeOH, ACN, TFA); pH: 1.5 – 7
Material: NH-functionalized acrylate copolymer network
Maximum Pressure: 50 – 80 bar (725 – 1160 psi), depending on porosity
Maximum Temperature: 80° C
Maximum Flow Rate: 2 ml/min
Particle Size: 5, 10 µm
Molecular Weight Range: 100 to > 30 000 000 Da

Standard Columns (others on request)

Separation Range [Da]       Preconfigured Column Sets
100 – 100 000                              NOVEMA Max Combination low (P/N 212-0001)
100 – 1 000 000                           NOVEMA Max Combination medium (P/N 212-0002)
100 – 3 000 000                           NOVEMA Max Combination high (P/N 212-0003)
100 – 30 000 000                        NOVEMA Max Combination ultrahigh (P/N 212-0004)

Separation Range [Da]        Single Porosity/Linear Columns
100 – 30 000                                 30Å
100 – 100 000                               100Å
1 000 – 1 000 000                        1 000Å
1 000 – 2 000 000                       3 000Å
100 – 100 000                               Linear S
1 000 – 1 000 000                        Linear M
5 000 – 3 000 000                       Linear XL

Part numbers depend on particle size and column dimensions

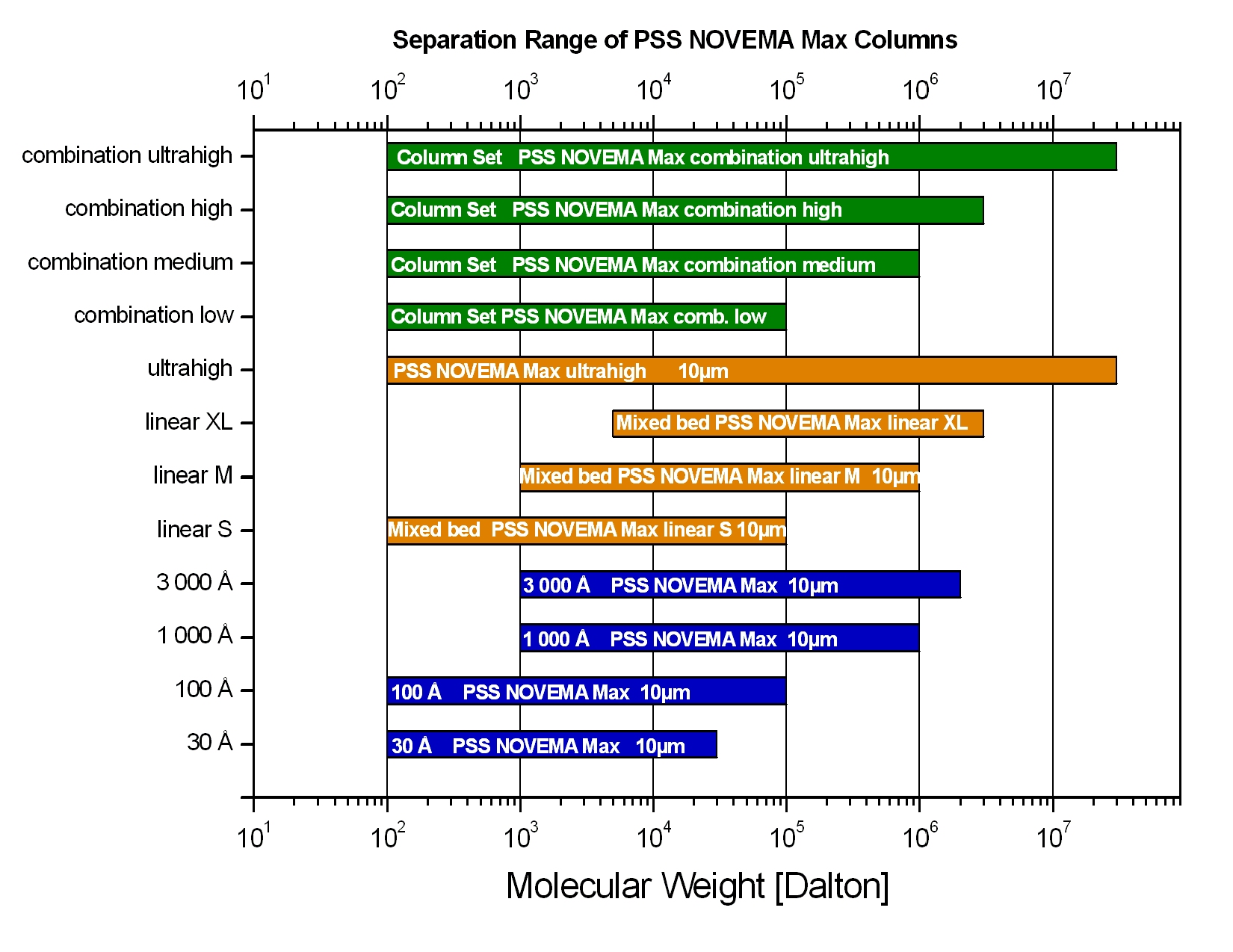

Separation Range
